R 294.00

Inductance measurement range: 0.1μH-2H

Capacitance measurement range: 1pF-2.5μF

Electrolytic capacitor measuring range: 0.1μF-30000μF

R 295.00

R237.00

Product Code: M8 LC

Product Code: QRP ATU

Product Code: QRP TRX

LED display
Interface: Q9 type
Antenna Interface: Q9 type
Impedance range: 30 ~ 300 Ω
Withstand Power : <20 W
Input power(Turning): <3 W
Operating Frequency: 1-30 MHz
Withstand RF power: < 15 W
RF power required(Tuning) : < 3 W

This is a very small simple 40 meter band micro-power CW transceiver, With a good antenna communications over several hundred km is possible. Power: 9V-12V regulated PSU.

Antenna: 50 ohm, unbalanced.

Transmit power: 1.9W @(9V ), 2.6W  @( 12V). Frequency: The oscillator frequency emission: 7023KHz; receiving local oscillator frequency: about 7023-7026KHz

Working Mode: CW

R 335.00

Product Code: UNI PART1

Click here for a list of all components contained in this kit.

R 145.00

Click here for a list of all components contained in this kit.

R 106.00

R 52.00

Product Code: CAP ASS1

Product Code: DC V/A1

Product Code: TACTILE1

Update frequency: about 200ms
Power supply scope: DC 4.5V ~ 30V
Measurement range: 10A / 50A / 100A  30V / 100V
Measurement accuracy: 0.1%
Storage temperature: -10°C ~ +65°C
Operating current: <20mA
Operating humidity: 10% ~ 80% (no condensation)
Sun exposure: no direct exposure
Size: 47 x 23 x 18mm

For more than 10A measurement a “shunt” is required

Size: 6 x 6 x 5mm
Temperature: -30 ~ +70 Centigrade
Withstand voltage: AC250V
Rated load: DC12V 50mA
Contact resistance: ≤0.03Ω
Insulation resistance: ≥100MΩ

R 110.00

Product Code: LED1

Working voltage: Red: 1.9V-2.1V @20mA
          Yellow: 1.9V-2.1V
          Blue:3.0V-3.2V
          Green: 2.1V-3.0V
          White:3.0V-3.2V
MCD:Red:300-400
          Yellow: 300-400
          Blue:500-700
          Green: 400-500
          White:6000-8000
Wave length: Red: 620-625
          Yellow: 588-590
          Blue:455-465
          Green: 567-570
          White: Colour temperature 8000m.

Below is a list of all the products imported and supplied locally by ZS6KMD. Please complete the order form located in the link to the right (click on image). Email the order form with proof of payment to projects@zs6kmd.za.net. Orders are processed once a week. Please allow 10 - 15 working days for shipments to arrive and clear customs after which goods will be shipped to you.

R 77.00

Update frequency: about 200ms
Measurement range: 3 - 30V
Measurement accuracy: 1%
Storage temperature: -10 °C to +65 °C
Operating current: <20mA
Operating Humidity: 10 to 80% (no condensation)
Display size: 22 x 14 x 7 mm

R 105.00

R 105.00

Product Code: DVM1

Product Code: DAM1

Product Code: DVM2

DC ammeter: 0-1A/0-10A/0-50A/0-100A with reverse polarity protection
Power supply: DC4-30V
Measuring range: 0 - 1A / 0 - 10A / 0 - 50A / 0 - 100A
Measurement accuracy: ±0.1%
Refresh rate: about 200ms
Colour: Red, green, yellow, blue
Operating current: Less than 8mA
Operating temperature: -10°C to 65°C
Input impedance: 5mΩ
Overall dimension: 48 x 29 x 26mm

Shunt required above 10A

0.56 LED Digital DC Voltmeter: 0 ~ 10V, 0 ~ 30V, 0 ~ 200V
Power supply: DC 4V ~ 30V
Measuring range: 0 ~ 10V, 0 ~ 30V, 0 ~ 200V
Measurement accuracy: ±0.1%
Refresh rate: about 200ms
Display colour: red, yellow, green, blue
Operating current: <8mA
Operating temperature: -10°C to +65°C
Input impedance: 100K
Overall dimension: 48 x 29 x 26mm

R 276.00

Product Code: HEAD1

Pitch: 2.54mm
Gender of  Connector: Male & Female
Number of Pins: 40 Pin Type of Row: Single-Row
Type of connector: Straight

50 x 40Pin Single Row Straight Male
50 x 40Pin Single Row Straight Female

R 600.00

Click here for a list of all components contained in this kit.

R 94.00

R 84.00

Product Code: SENS1

Product Code: C SENS1

Product Code: 1602Y

Chip: ACS712ELCTR-30A
Supply power: 5V
Measuring range: 30A
Analogue output: 66 mV/A
When the current is 0, the output is the power midpoint voltage, isolated
Dimension: 37 x 19mm
PCB Size: 31 x 13mm

LCD display module with yellow backlight. Wide viewing angle and high contrast. Built-in industry standard HD44780 equivalent LCD controller. Commonly used in: copiers, fax machines, laser printers, industrial test equipment,
networking equipment such as routers and storage devices
LCM type: Characters
Can display 2-lines X 16-characters
Operate with 5V DC
Module dimension: 80mm x 36mm x 12mm
Viewing area size: 64.5mm x 16mm

R 84.00

Product Code: 1602B

LCD display module with blue backlight. Wide viewing angle and high contrast. Built-in industry standard HD44780 equivalent LCD controller. Commonly used in: copiers, fax machines, laser printers, industrial test equipment,
networking equipment such as routers and storage devices
LCM type: Characters
Can display 2-lines X 16-characters
Operate with 5V DC
Module dimension: 80mm x 36mm x 12mm

R 100.00

Nokia 5110 LCD Module, Arduino Compatible
Pin Connections
1. RST--------- reset.
2. CE------------chip selection.
3. DC-----------data/commands choice.
4. DIN-----------serial data line.
5. CLK------------serial Clock Speed.
6. VCC----------Power, 3.3V (Positive).
7. LIGHT--------- backlight control terminal.
8. GND-----------power negative.

R 899.00

R 77.00

Product Code: N5110

Product Code: AUK1

Product Code: DS1307

Click here for a list of all components contained in this kit.

DS1307 I2C real time clock chip (RTC)
24C32 32K I2C EEPROM memory
Using LIR2032 rechargeable lithium battery with charging circuit
Solve the problem of no literacy of the DS1307 with backup battery
Support timing 1 year of the DS1307 after fully charged
Leads to the DS1307 clock pin provides a clock signal for the microcontroller
Other I2C devices can be cascaded
Size: 27 x 28 x 8.4mm

R 77.00

Product Code: DHT11

Model: sensor DHT11
Signal transmission range: 20m
Humidity measuring range: 20 - 95% RH
Humidity measurement error: + / -5%
Temperature measurement range: 0 - 50°C
Temperature measurement error: + / -2°C
Operating voltage: 3.3 - 5V
Output type: digital output
Small plates PCB size: 3.2 x 1.4cm
Net weight: 8g

R 119.00

This is a basic 16 character by 2 line black-on-green display.
Utilizes the extremely common HD44780 parallel interface chipset.
Interface code is freely available.
Blue Backlight with white words.
Uses 4 Bit Arduino LCD Library.
Size:8cm x 5.9cm - 3.15inch x 2.32inch.

R 77.00

R 102.00

Product Code: KS1602

Product Code: GY273

Product Code: ARDNAN

Item name: HMC5883L module (three-axis magnetic module)
Model: GY-273
Chips: HMC5883L
Communication: IIC communication protocol
Measuring range: ± 1.3-8 gauss
Power supply: 3-5V
Size: 1.8 x 1.3 cm

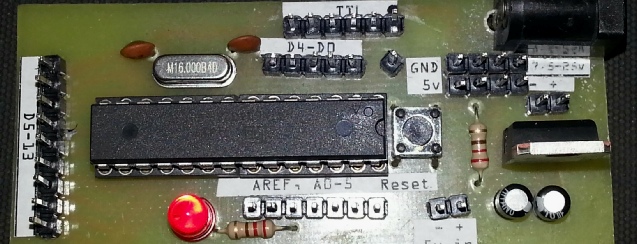

Microcontroller Atmel ATmega328
Operating Voltage (logic level): 5V
Input Voltage (recommended): 7V ~ 12V
Input Voltage (limits): 6V ~ 20 V
Digital I/O Pins: 14 (of which 6 provide PWM output)
Analogue Input Pins: 8
DC Current per I/O Pin: 40mA
Flash Memory: 32KB (ATmega328) (of which 2 KB used by bootloader)
SRAM: 2KB (ATmega328)
EEPROM: 1KB (ATmega328)
Clock Speed: 16MHz

R 102.00

Product Code: ARDPM

New version, Pro Mini 328  5V  16MHz ,  Arduino-compatible
High Quality components and soldering material
Bootloader Ready, plug and play.

R 77.00

Size: 1.4 x 1.2cm
Supply voltage: 1.8V to 3.6V(VDDA), 1.62V-3.6V(VDDD)
Pressure ranges: 300 to 1100hPa (altitude 9000m - 500m)
Low power consumption: 5μA
Resolution: 0.06hPa (altitude 0.5m) in low power consumption model, while it's 0.03hPa (0.25M) in high liner model.
This module is compliant to RoHS without lead.
MSL 1 reaction time: 7.5ms
Standby Current: 0.1μA

R 75.00

R 684.00

Product Code: BMP180

Product Code: SHHDM

Product Code: AUK2

Operating voltage: 3.3V~5V.
Adjustable sensitivity (shown in blue digital potentiometer adjustment)
Dual output mode, analogue output more accurate.
A fixed bolt hole for easy installation.
With power indicator (red) and digital switching output indicator (green).
Having LM393 comparator chip, stable.
Panel PCB Dimension: 3cm x 1.5cm.
Soil Probe Dimension: 6cm x 2cm.
Cable Length: 21cm.

Click here for a list of all components contained in this kit.

R 492.00

Product Code: AUK3

Click here for a list of all components contained in this kit.

Please contact us for current pricing due to the fluctuating R/$
